TON6800HⅡ Optical Node

TON6800HII optical node can be used for CATV network, digital network and telecom network. It is especially suitable for the FTTx network where the fiber is extended ...

Current position：HOME > HFC

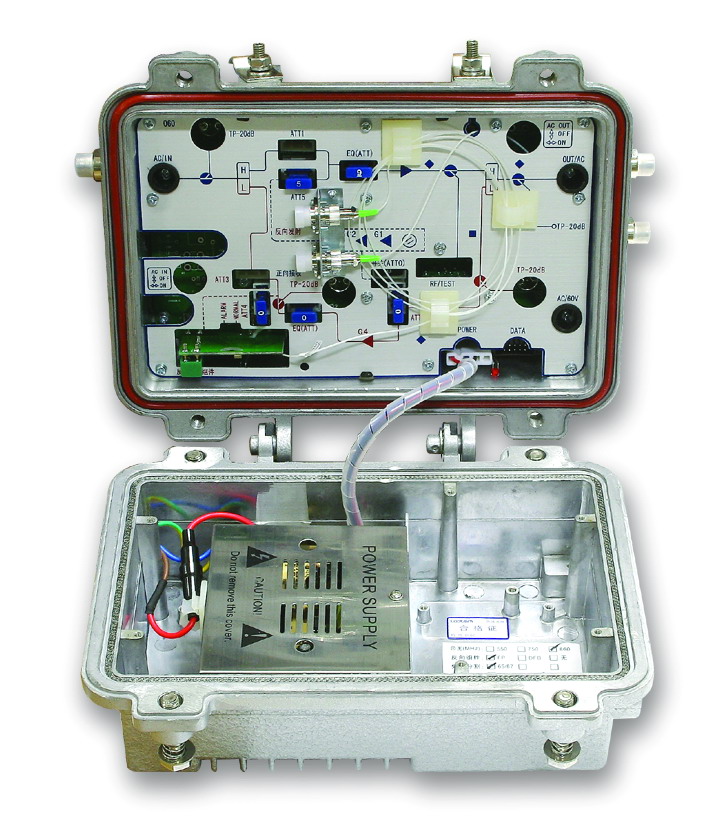

TON6800HⅡ Optical Node

Overview    TON6800HII optical node can be used for CATV network, digital network and telecom network. It is especially suitable for the FTTx network where the fiber is extended to the building, and output directly cover subscribers.
   TON6800HII input optical power range is ＋2dBm～－8dBm, output is above 108dBuV. When the receiving optical power is －6dBm, C/N＞47dB.
   220V or 60V power supply optional, the high-performance conversion circuit enable it turn into +24V, +5V DC power to supply the optical receiver internal device. Features         ● Flexible Structural design, wide application: forward optical receiver, reverse optical transmitter or reverse RFoG;
        ● Perfect surge suppression circuitry, improved the anti-lightning strike and the prevention of lightning surge shocks;
        ● Input stage adopt imported low-noise GaAs amplifier, output stage adopt imported CATV high-performance, high reliability amplify module, greatly improved the C/N and non-linear distortion characteristics while significantly reducing the power consumption;
        ● Rigorous reliability test, MTBF ＞100,000 hours;
        ● Forward AGC function, optical power at the range -6dBm～+2dBm, the output level change within ±1dB;
        ● RF output level fixed-adjustable, slope adjustable; 1～2 output ports optional, split/tap optional for 2 output ports;
        ● Network management interface transponder can be reversed, good for remote monitoring. Technical Specifications

	Item		Unit	Forward	Return
Optic	Optical wavelength		nm	1200～1600	1310±20
	Optical input power		dBm	-8～+2	—
	Optical output power		dBm	—	≥0
	Optical return loss		dB	≥40	—
	Input power indicate		dBm	1:1	OP test point:1V/mW
	Return laser type			—	DFB/FP optional (with isolation)
	Optical connector			FC/APC or SC/APC
RF	Bandwidth		MHz	47/87～860/1000	5～30/65
	Standard output level (Refer to below Remark)		dBuV	≥108	—
	Link flatness		dB	±1.5
	RF output ports number		pcs	1～2	—
	RF test point		dB	－20±1.0
	Nominal RF input / output impedance		?	75
	Return loss		dB	≥16	≥16
	Link	C/N	dB	≥51.0	—
		CTB	dBc	≥65.0	—
		CSO	dBc	≥61.0	—
		NPR Dynamic Range	dB	—	15@NPR≥30
General	Dimension		mm	250×210×130
	Voltage		Vac	220 or 60
	Power Consumption		VA	＜19
	Operating Temperature		℃	－25～＋55
	Storage Temperature		℃	－25～＋65
	Weight		Kg	3.2
Remark : Measured by standard laser transmitter, the circuit is composed by 10km fiber and optical attenuator, optical received power is -1dBm. Frequency ranges at 550MHz, according to Chinese standard configure 59 PLA-D television channels. RF output signal slope is 12dB (862MHz), RF output signal level is 108dBuV (Gallium arsenide type power doubling output stage).

Reverse Laser Transmitter (RFoG Burst Mode)

NO.	Item	Unit	Description
Optical
1	Nominal Wavelength	nm	1310/1590/1610
2	Laser Type		FP		DFB
3	Laser Operating Mode		Burst Mode (Or Continuous Mode)
4	NPR@ Dynamic Range≥30dB	dB	20		25
RF
5	Recommended Input Level	dBμV	80
6	Frequency Range	MHz	15/20/25～65	15/20/25～65
7	Flatness	dB	±0.75
8	Return Loss	dB	≥16
